Final Test Drop
Drop During Concert
I created and executed plans to incorporate an American Flag drop and cold spark machines in our concert, which were both controlled from the lighting board via DMX. Below is media of the flag drop and its hardware.

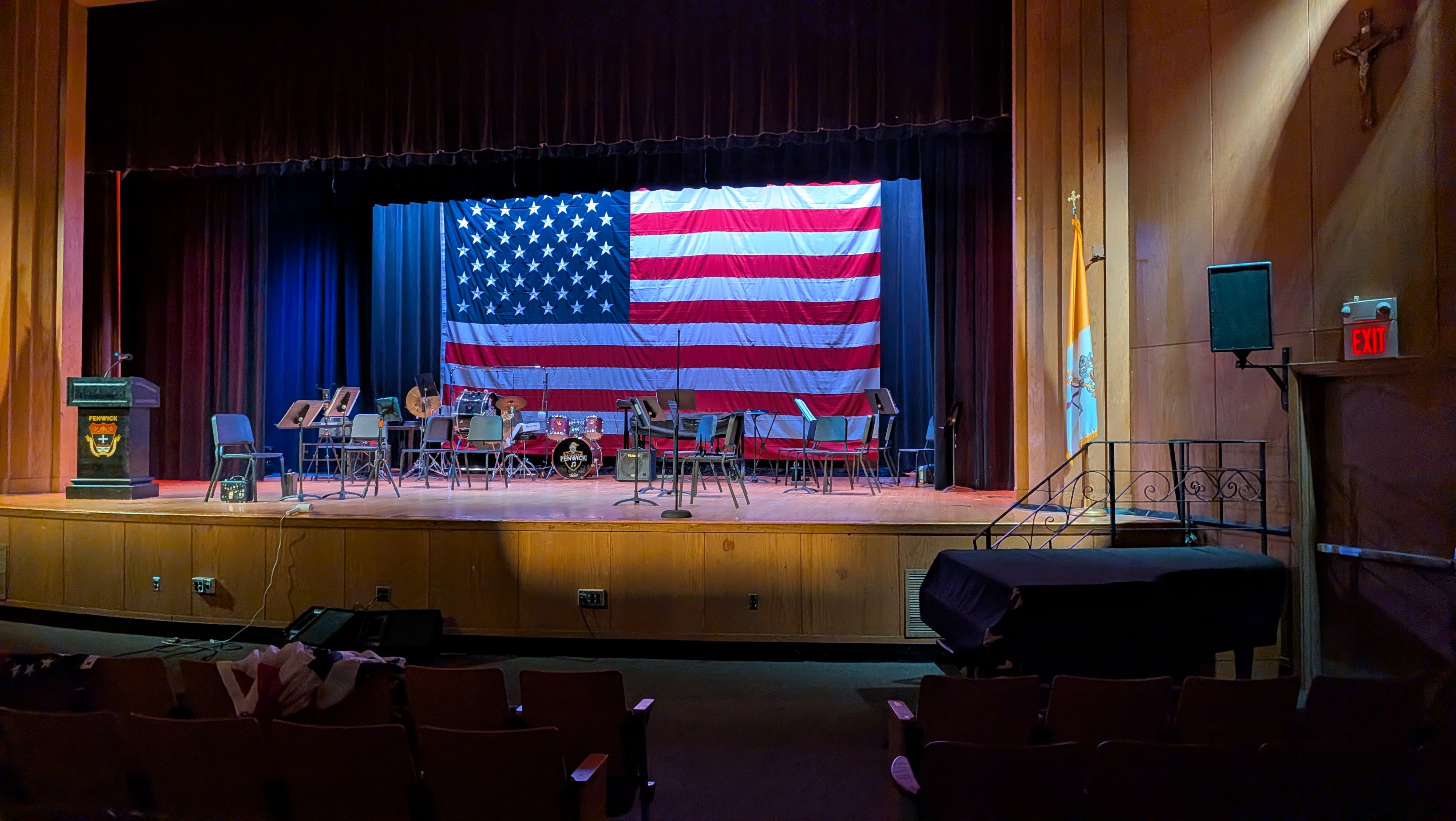

Final Flag Drop (image + videos)
Final Test Drop
Drop During Concert

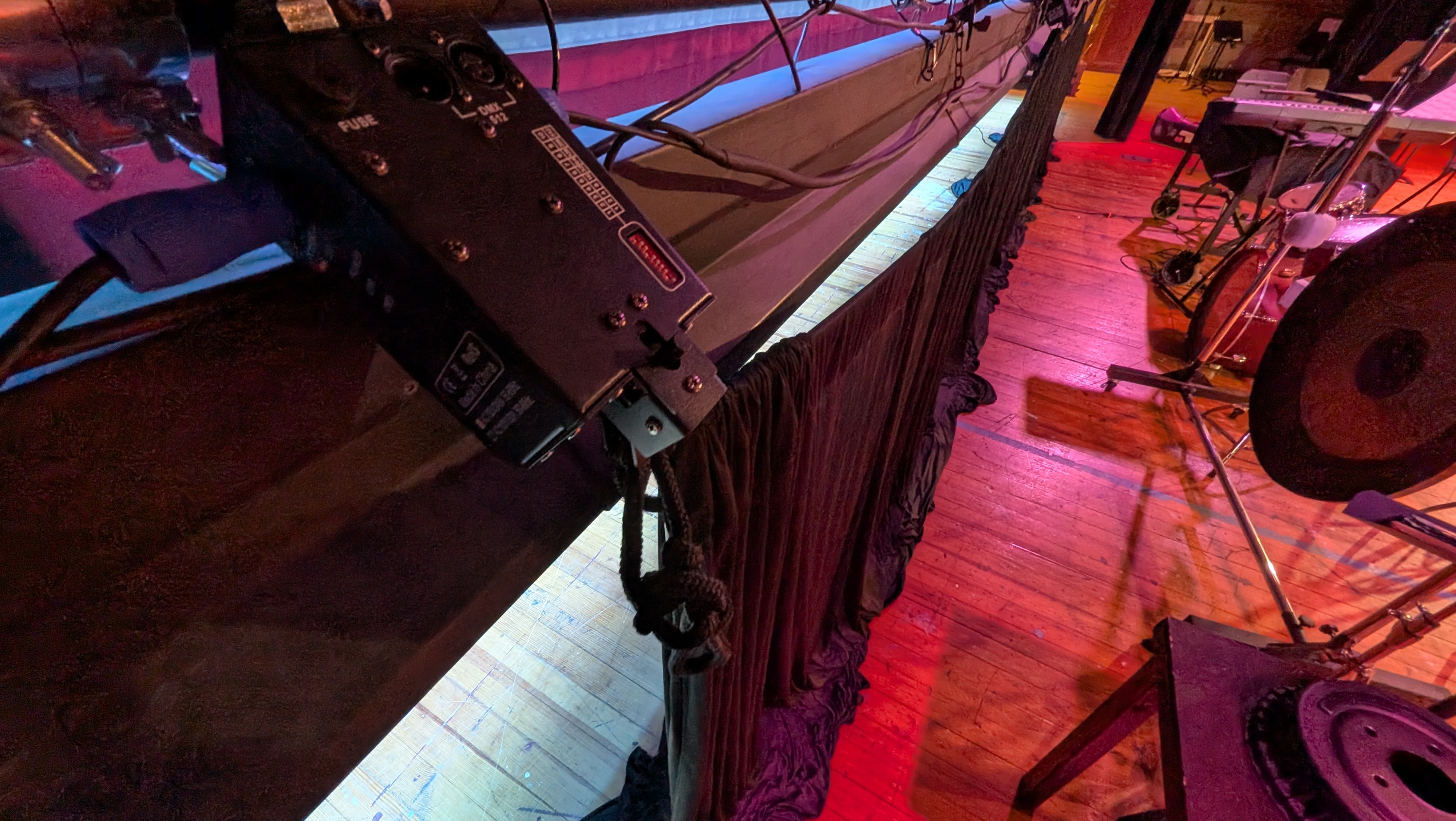

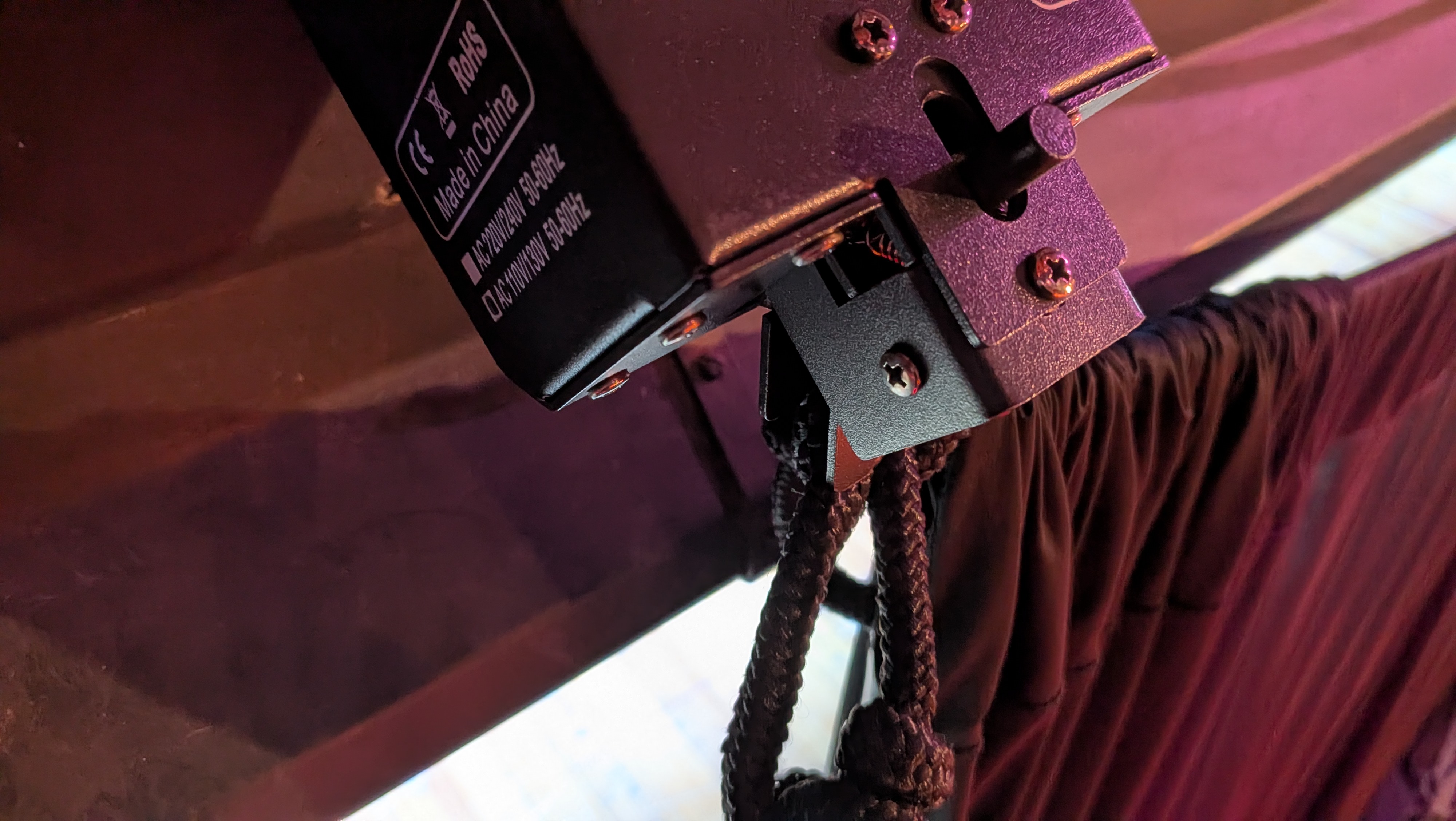

To drop the curtain which revealed the flag, I used four kabuki drops, which when given power by a DMX controlled dimmer, would fire and drop the curtain, hiding the flag. View close-ups of this hardware below.
Below, you can also view videos of failed drops, recorded during the prototyping process.
First Test Drop
Failed Drop

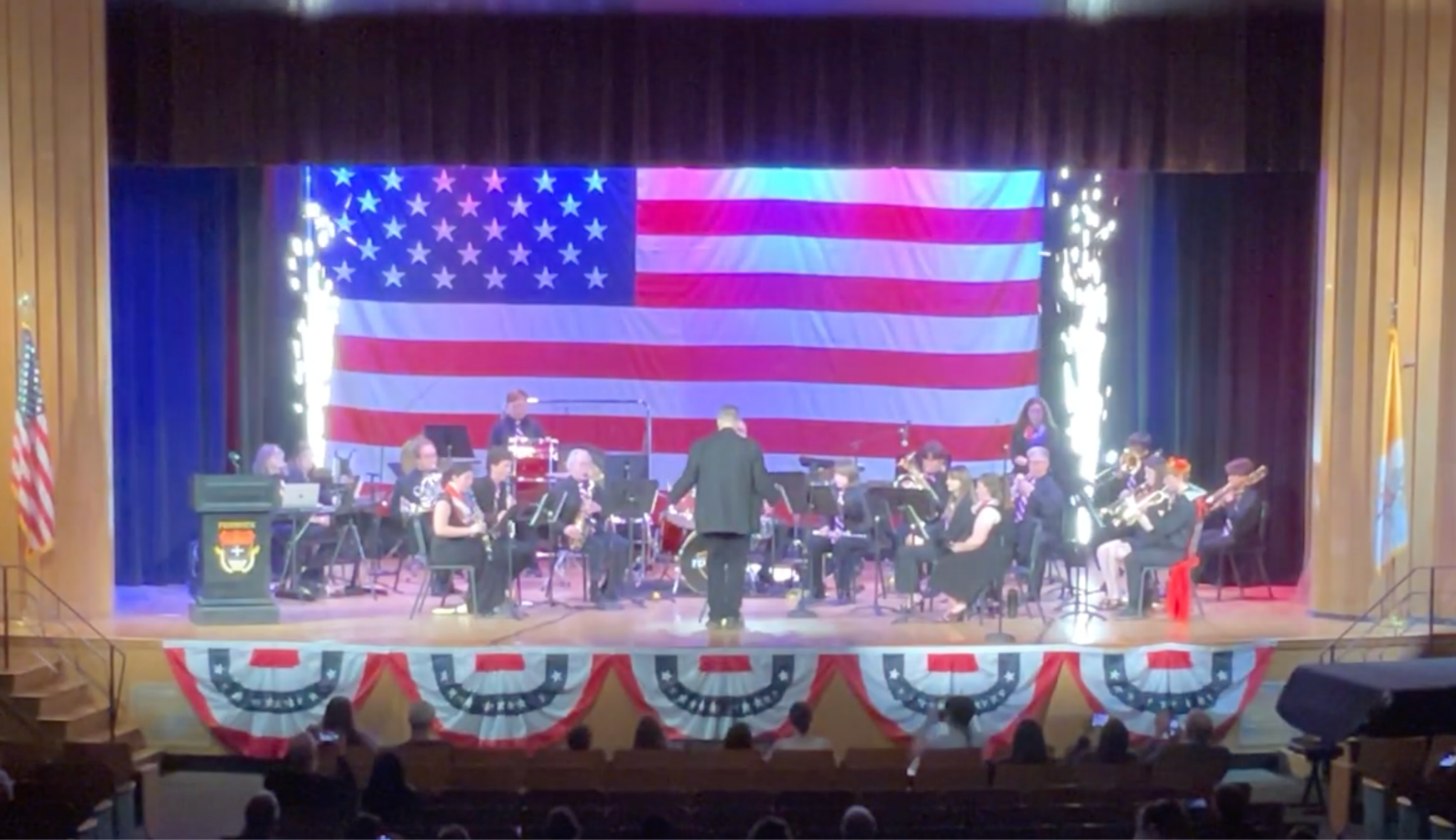

Additionally, I prepared and set up cold-spark machines, to be fired during the concert. These were also controlled through the lighting board through DMX. Vides of these machines can be seen below
For more previews of content shown here, or for downloads of any resources shown, please Contact Dave.
